ASME B16.5 FLANGE

1.What is ASME B16.5 Flange?

ASME B16.5 Flange standard covers Steel Pipe Flanges and Flanged Fittings from NPS 1/2 through NPS 24 Metric/Inch in pressure class 150 to class 2500. ANSI B16.5 Flange covers pressure-temperature ratings, marking, materials, dimensions, tolerances, testing, and methods of designating openings for pipe flanges and flange fittings.

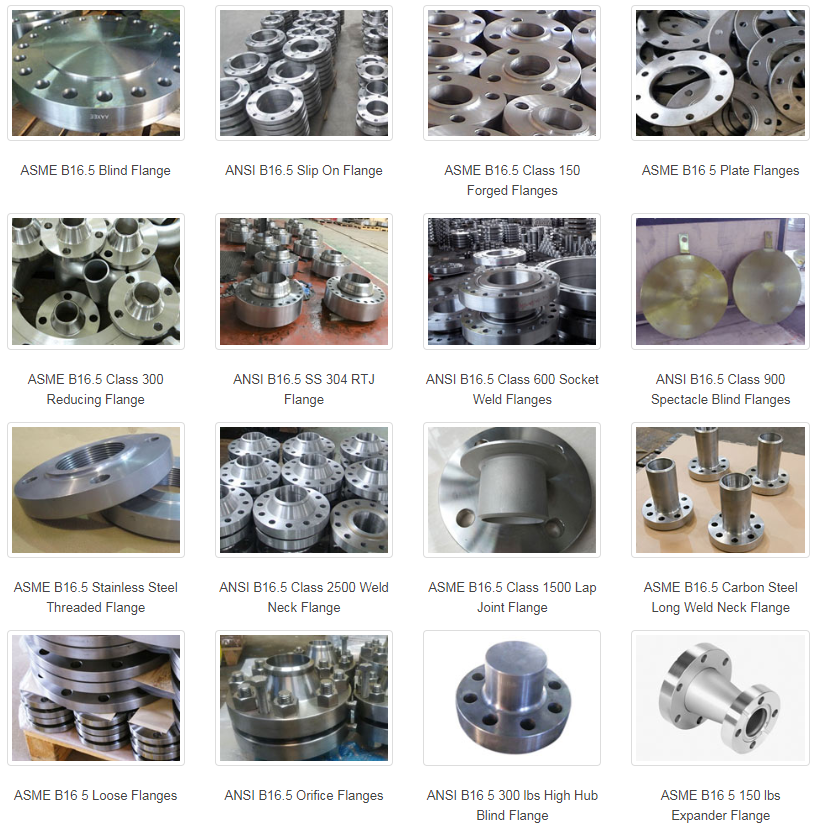

2.ASME B16 5 Flanges Types

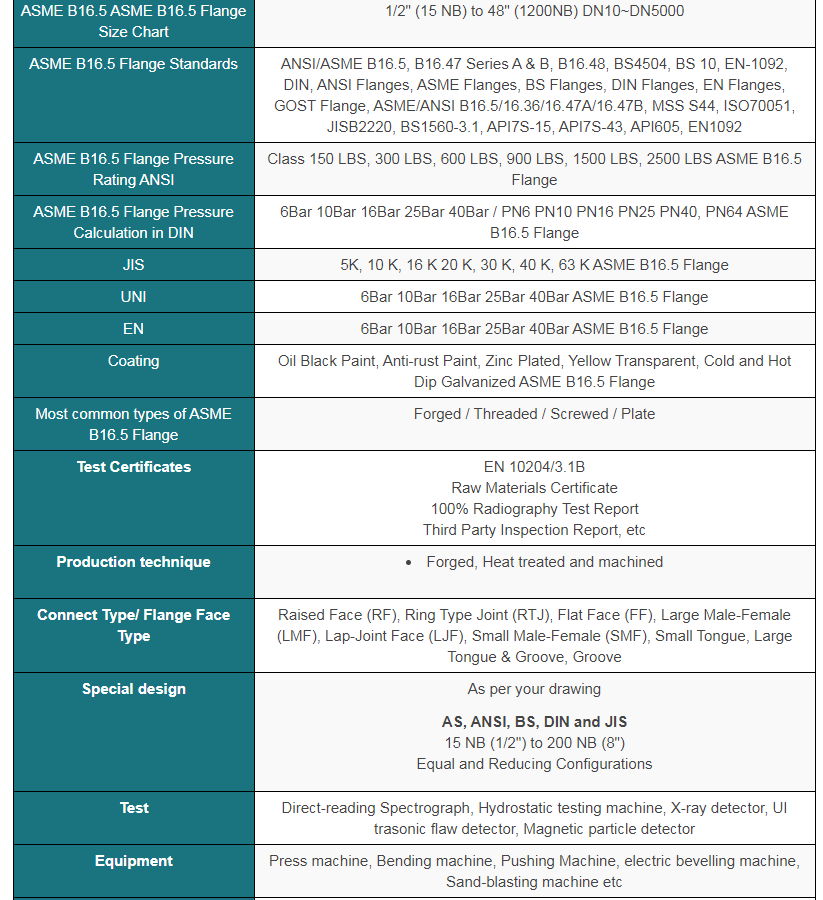

3.ASME B16.5 Flange Specification

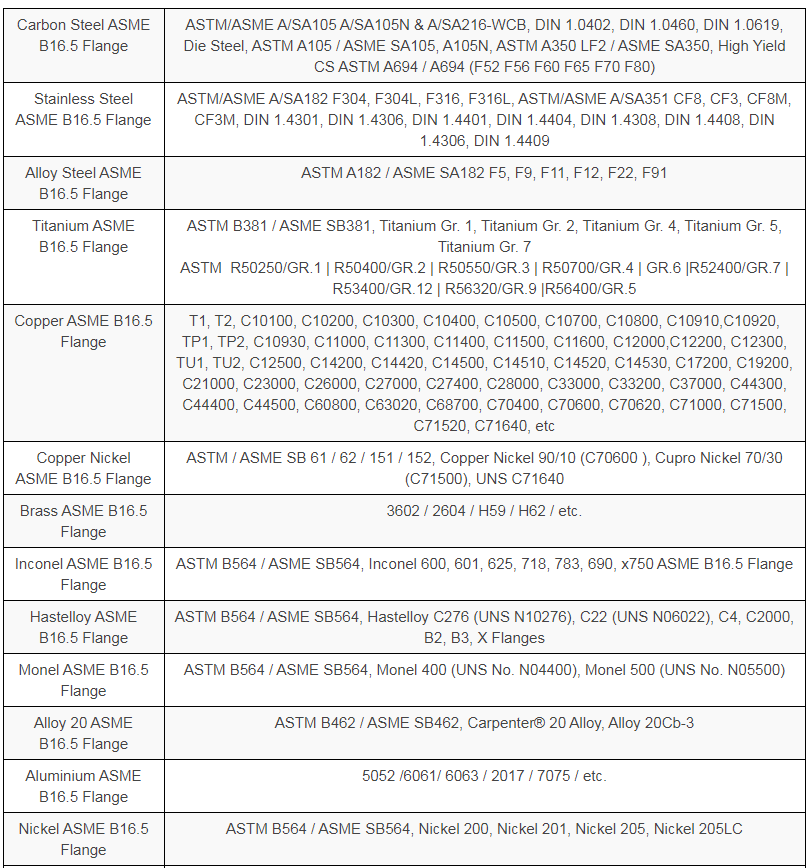

4.ASME B16.5 Flange Material

Prestige quality ASME B16.5 Flange manufacturers in china offer these Carbon Steel ASME B16.5 Flange in DIN, EN, BS, ISO, JIS or ANSI standard.

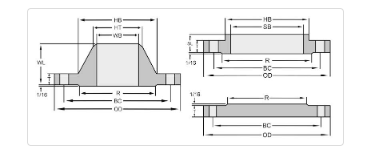

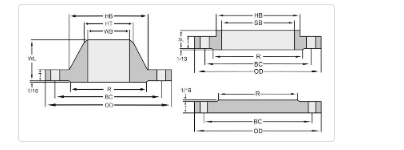

5.ASME B16.5 Flange Dimensions

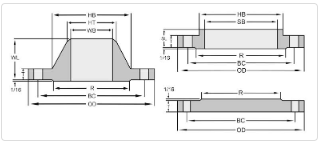

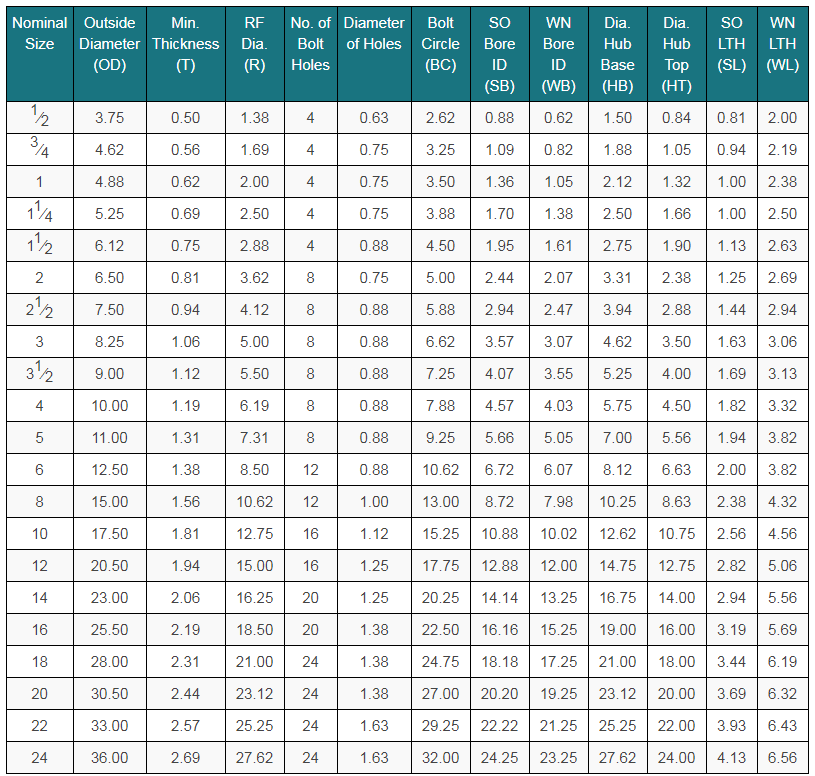

ASME B16.5 Class 150 Flange Dimension

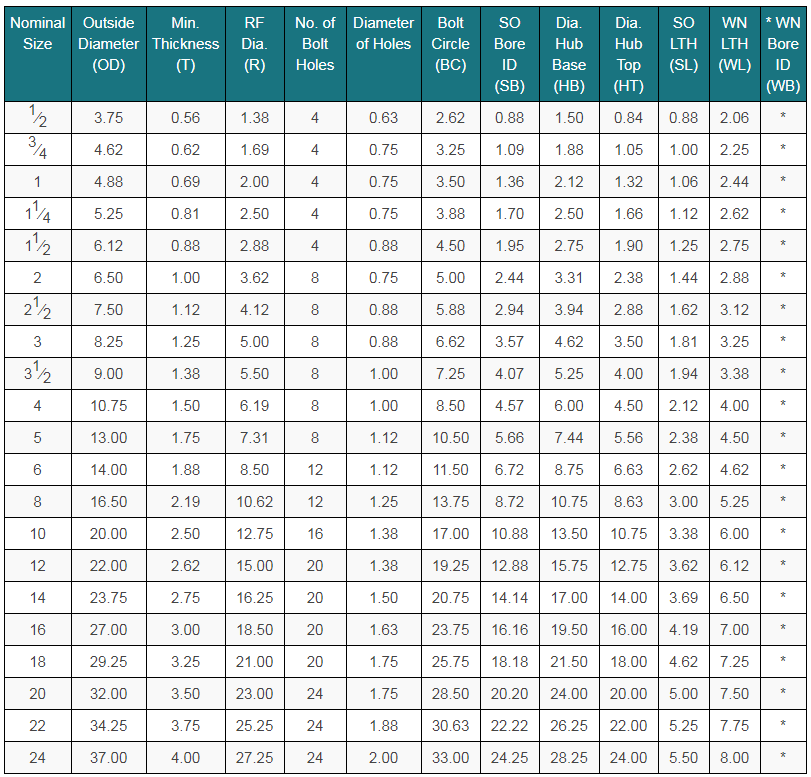

6.ANSI/ASME B16.5 Class 300 Flange Dimensions, ANSI B16.5 Class 300 Flange Dimensions in mm

7.ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

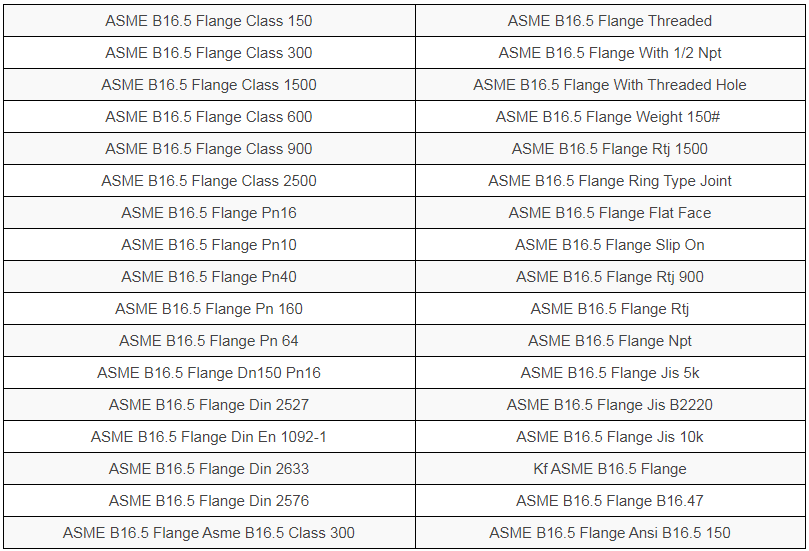

8.Type of ASME B16.5 Flange we produce:

LANGFANGDINGYANG FLANGE PIPE FITTING CO.,LTD is a Govt.approved certified Carbon Steel ASME B16.5 Flange exporter in India. All of our Stainless Steel ASME B16.5 Flange are manufactured and tested to international standards, and specifications as per DIN, JIS, EN, ASTM etc. We are well-known as a trusted vendor as a Alloy Steel ASME B16.5 Flange distributor & dealer in your country.

If you need more information about ASME B16.5 flange!
Please send me email : info@fittingflange.com.
