LONG WELD NECK FLANGE

1. What is a Long Weld Neck Flange

Long Neck Welding flanges (LWN) are similar to a standard Welding Neck flange, but the “Neck” is considerably longer. These Long Weld Neck Flange is often used as a nozzle for a barrel or column. In addition, there are the type LWN Heavy Barrel (HB) and the Equal LWN Barrel (E); they have a different shape and a thicker “Wall”.

We Recognize as a Trusted Manufacturers, Suppliers, & Exporters of Long Weld Neck Flange, Class 150 Long Weld Neck Raised Face Flange, Flat Faced Long Weld Neck Flange, ASME B16.47/ANSI B16.5 Long Weld Neck Flange, Long Weld Neck Plate Flange, Series A & B Long Weld Neck Flange, Long Weld Neck Forged Flange, MSS SP-44 Long Weld Neck Flange, DIN86029 PN10 Long Weld Neck Flange, Class 300, 600, 900, 1500 Long Weld Neck Flange Dimensions.

Materials used in Manufacturing of Long Weld Neck Flange includes Stainless Steel(SS), Hastelloy, Monel, Inconel, Titaniun, Duplex Steel, Nickel Alloy, Super Duplex Steel, Incoloy, Alloy 20, 254 SMO, Copper Nickel, Carbon Steel(CS), Alloy Steel, Aluminium, Bronze, Mild Steel(MS), Brass.

2. LongWeld Neck Flange SPECIFICATION:

• Type  Long Welding Neck Flange (RFLWN)
• Size  ½” (15 NB) to 48″ (1200NB)
• Class  150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
• DIN  DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
• BS  BS4504 , BS4504, BS1560, BS10
• In Form  SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
• Specialize  As per drawing
• Standard  ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
• Coating/Surface Treatment  Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
• Connection Type  Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
• Flange Face Type  Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
• Dimensions  ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• Packing  No Fumigate or Fumigate Plywood/Wood Pallet or Case
• Usage/Applications  Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

3.MATERIALS,STANDARDS&GRADES OF Long Weld Neck Flange

• Stainless Steel Long Weld Neck Flange  ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
• Duplex Steel Long Weld Neck Flange  ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
• Super Duplex Long Weld Neck Flange  ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
• Nickel Alloys Long Weld Neck Flange  ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
• Copper Alloys Long Weld Neck Flange  ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
• Alloys Long Weld Neck Flange  ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
• Low Temperature Steel Long Weld Neck Flange  ASTM A350 LF2, LF3, LF6
• High Yield Long Weld Neck Flange  ASTM A694 F42, F52, F60, F65, F70
• Carbon Steel Long Weld Neck Flange  ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
• Alloy Steel Long Weld Neck Flange  ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
• Micron Steel & Tubes is an ISO enterprise. we have expanded ourselves as well our services, products and production patterns, emerging as a manufacturers, stockists and exporters of Long Weld Neck Flange in hard-to-find metals. SS Long Weld Neck Flange have a hub that extends from the flange’s flat surface, which helps in accommodating the pipe more easily. Hastelloy Long Weld Neck Flange fall under the group of speciality flanges, providing reinforcement in services at higher temperatures in the oil industry. A Alloy Steel Long Welding Neck Flanges is preferable in the petroleum and chemical industry as they operate under fluctuating temperature ranges.

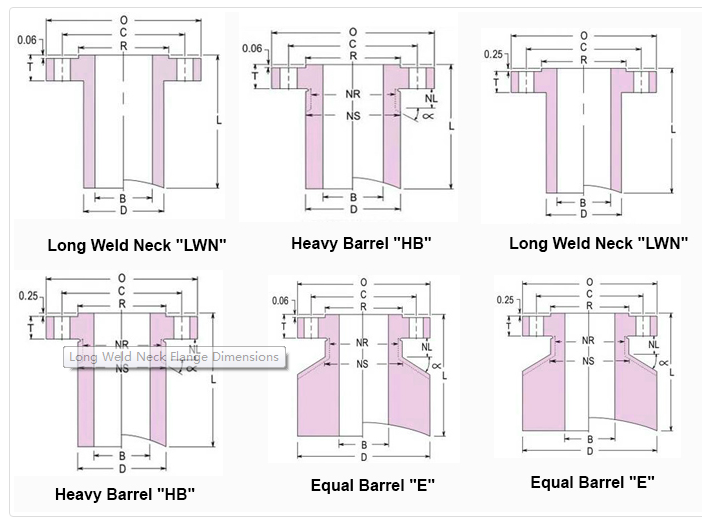

4.Asme B16.5 Long Weld Neck Flange Dimensions:

LANGFANGDINGYANG FLANGE PIPE FITTING CO.,LTD  is counted as one of the privileged manufacturers, stockist, exporters & suppliers of an admirable range of Long Weld Neck Flange. Long Weld Neck Flange have a hub that extends from the flange’s flat surface, which helps in accommodating the pipe more easily. Hastelloy Long Weld Neck Flange fall under the group of speciality flanges, providing reinforcement in services at higher temperatures in the oil industry. A Alloy Steel Long Welding Neck Flanges is preferable in the petroleum and chemical industry as they operate under fluctuating temperature ranges.

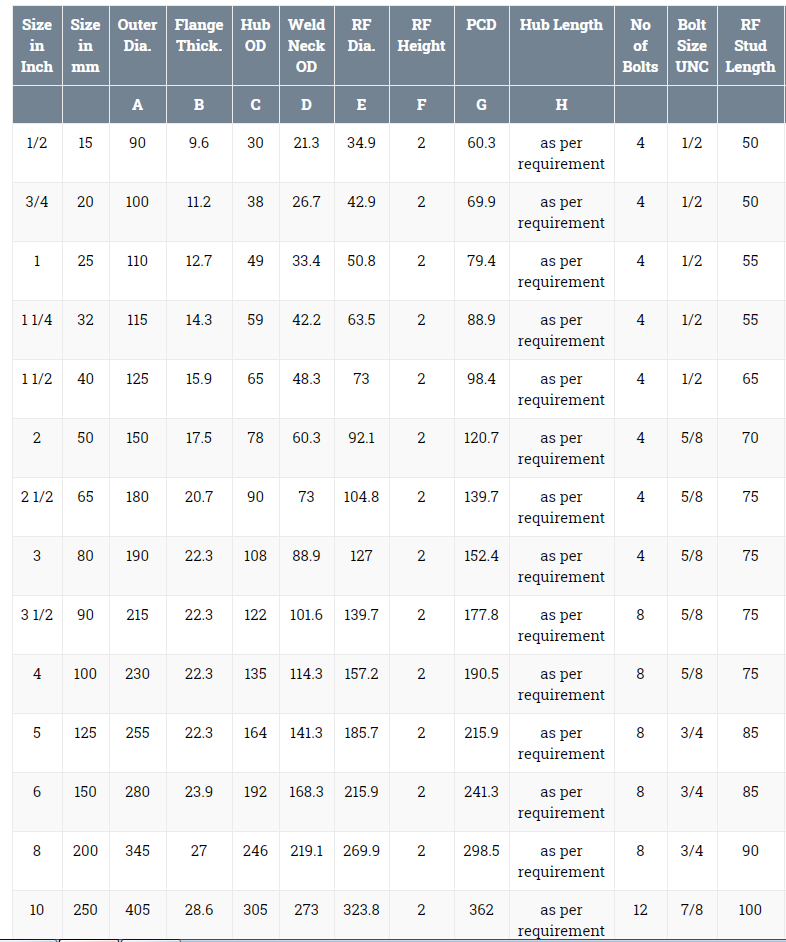

5.Long Weld Neck FLANGE DIMENSIONS(150 CLASS):

6.Long Weld Neck FLANGE DIMENSIONS(400 CLASS):

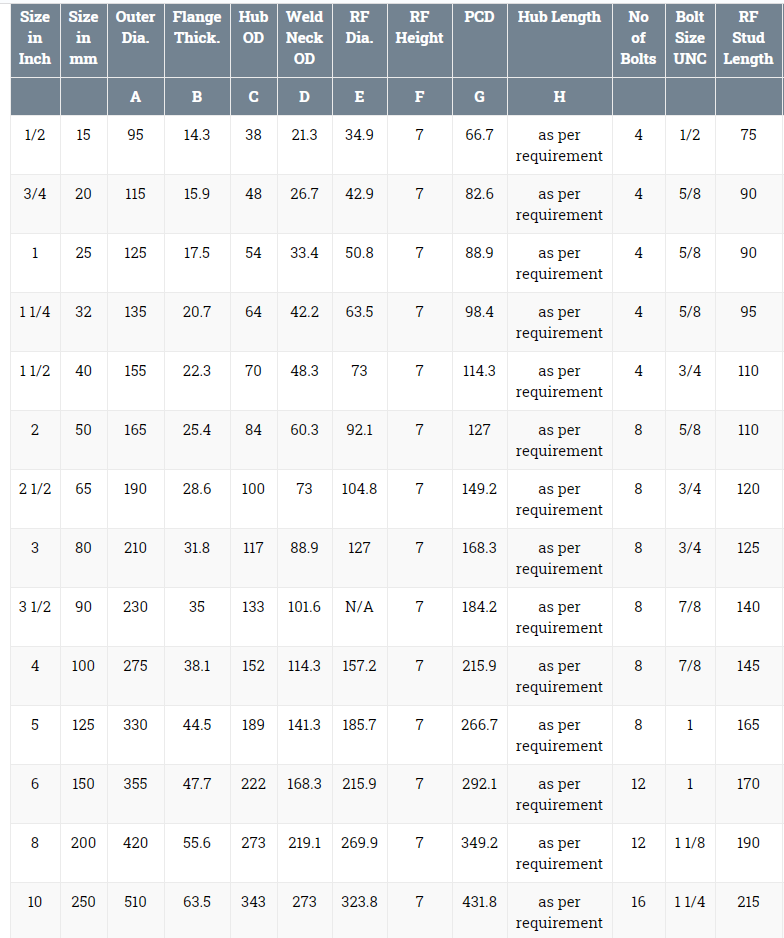

7.Long Weld Neck Flange DIMENSIONS(600 CLASS):

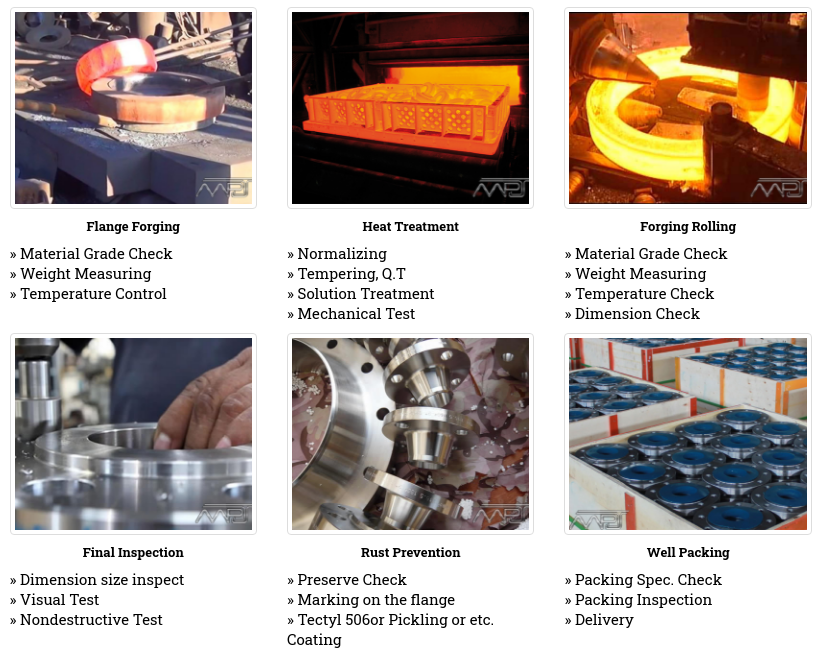

8.Manufacturing Process of Long Weld Neck Flange

LANGFANGDINGYANG FLANGE PIPE FITTING CO.,LTD have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our LWN Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also  accept Third Party Inspection appointed by our clients.

If you need much more information about Long Neck Welding flanges.

Please send me email : info@fittingflange.com.
