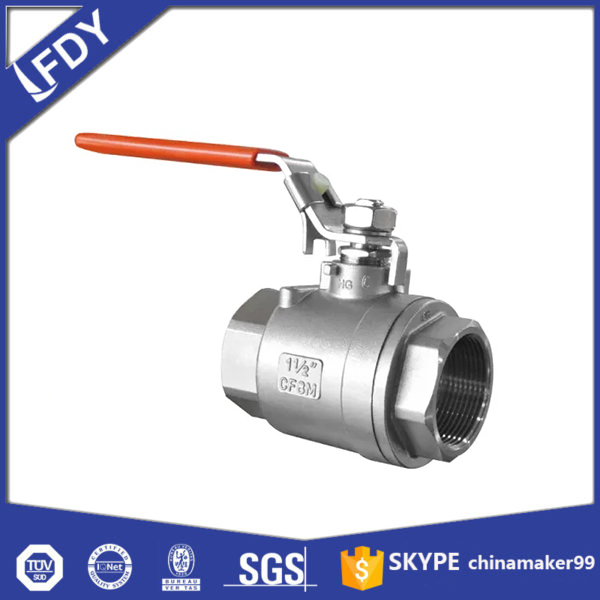

Full Port Ball Valve

Categories: ,

Description

Configured Product Information

Serviceable Series: two piece standard port 304/304L/316/316L stainless steel ball valve.
Body seal and Stem Seal are glass reinforced PTFE. Seats are RPTFE.
Pipe connections are NPT (National Pipe Taper)/BSP female screwed end.
Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P.
Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design.
Products are marketed per Valve Standard Terms & Conditions. All Valve Products MADE IN CHINA.
Valve operator is manual Stainless Steel Lever style handle with vinyl grip secured with locking stem nut.

Specification

Sellable Yes
Valve Type Two-way, ON/OFF
Valve Style Two-Piece Body-Standard Port
Valve Size  1/4”-4”
Valve Body Material Stainless steel
Valve Temperature Range -20°F to 400°F (-28.8°C to 204.4°C)
Valve Pressure Rating
1,000 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI
Application Applied to stainless steel pipeline system, water system, petrolum system etc
Connection Ends Socket weld or Threaded: NPT, BSP, BSPT etc.

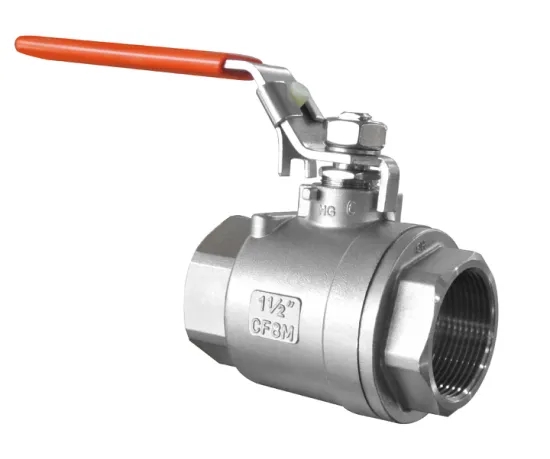

Full Port 1'' NPT Stainless Steel 2PC Ball ValveFeatures:
1.1000PSI/PN63
2.Reduce Port
3.Investment Casting
4.Blow out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(CE0036) Approved
7.Casting Approved Ad2000-W0
8.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
9.Inspection Testing: API598, EN 12266
