Description

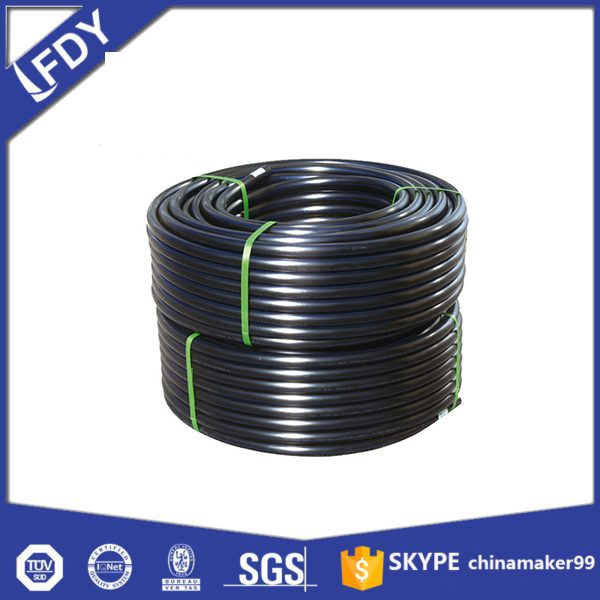

HDPE PIPES Introduction:
1) Material:PE100/PE80
2) Standard:GB/T9001-2000
3) Certification:ISO9001:2008
4) Package:Nuded packing
5) Connection:Butt fusion,socket joint ,electric connect
6) Color:black with blue stripe or customized
7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa
Product Feature:
1) Non-toxic,No Leakage
2) Smooth Surface
3) Excellent Flexibility
4) Easy Installation and Lower costs
5) Hygienic Safety
6) Corrosion resistant
7) Recycle and environment-friendly
Product Specification:
| External Diameter Dn(mm) | HDPE PIPE(SDR13.6) | |
| Thickness(mm) | Weight(KG/M) | |
| 50 | 3.7 | 0.558 |
| 63 | 4.7 | 0.895 |
| 75 | 5.6 | 1.265 |
| 90 | 6.7 | 1.82 |
| 110 | 8.1 | 2.69 |
| 125 | 9.2 | 3.43 |
| 140 | 10.3 | 4.22 |
| 160 | 11.8 | 5.67 |
| 200 | 14.7 | 8.81 |
| 225 | 16.6 | 11.15 |
| 250 | 18.4 | 14.07 |
| 280 | 20.6 | 16.8 |
| 315 | 23.2 | 22.38 |
Applications:
1) Municipal water supply, gas supply and agriculture etc
2) Commercial & Residential water supply
3) Industrial liquids transportation
4) Sewage treatment
5) Food and chemical industry
6) Replacement of cement pipes and steel pipes
7) Argillaceous silt, mud transportation
8) Garden green pipe networks
Mainly connection ways:
1) Dn≤110mm,Use hot melt socket connection or fused connection
Dn≥110mm,Use butt fusion connection or fused connention
2) Connection with metal pipe and metal fittings ,can connected by flange connection
