Threaded flanges look very similar to Slip-On flanges but the main difference is that the threaded flange has been was bored out to match a specific pipe inside diameter. The backside of this center opening is then threaded with the relevant-sized tapered pipe thread.
Threaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding.

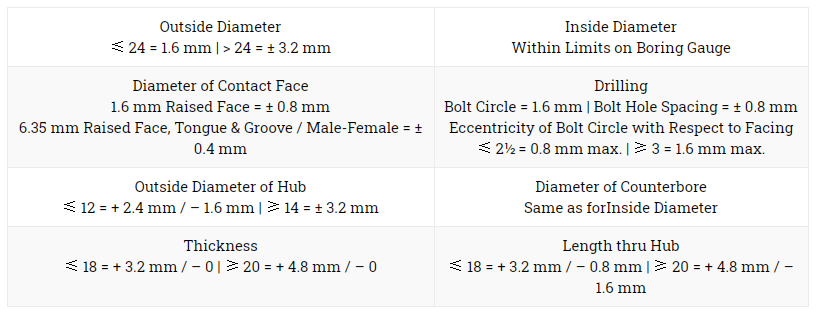

- ASME B16.5Threaded Flanges Dimensional Tolerances
3.Threaded Flanges SPECIFICATION:
- Type Screwed/Threaded Flange
- Size ½” (15 NB) to 48″ (1200NB)
- Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
- BS BS4504 , BS4504, BS1560, BS10
- In Form SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
- Specialize As per drawing
- Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
- Coating/Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
- Connection Type Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
- Flange Face Type Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
- Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Packing No Fumigate or Fumigate Plywood/Wood Pallet or Case
- Usage/Applications Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

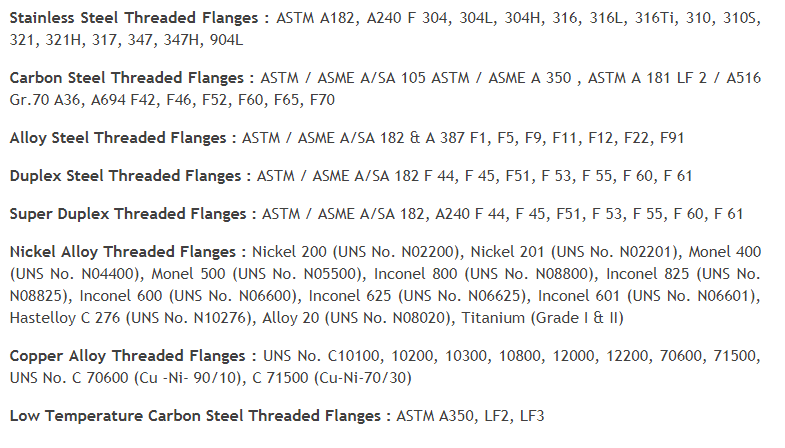

- ThreadedFlanges MATERIAL&GRADES:

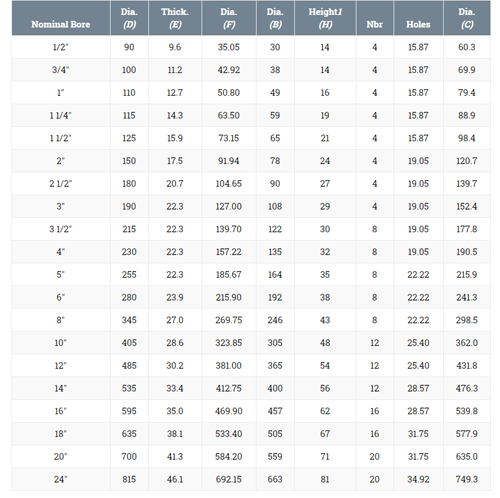

5.Threaded Flanges 150 LBS DIMENSIONS:

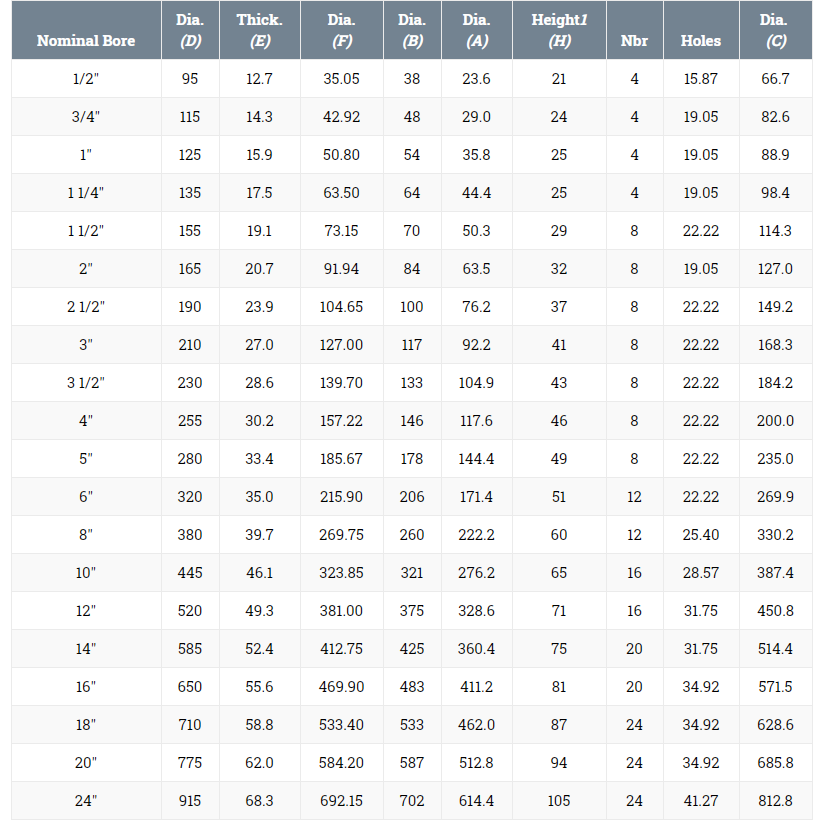

6.Threaded Flanges 300 LBS DIMENSIONS:

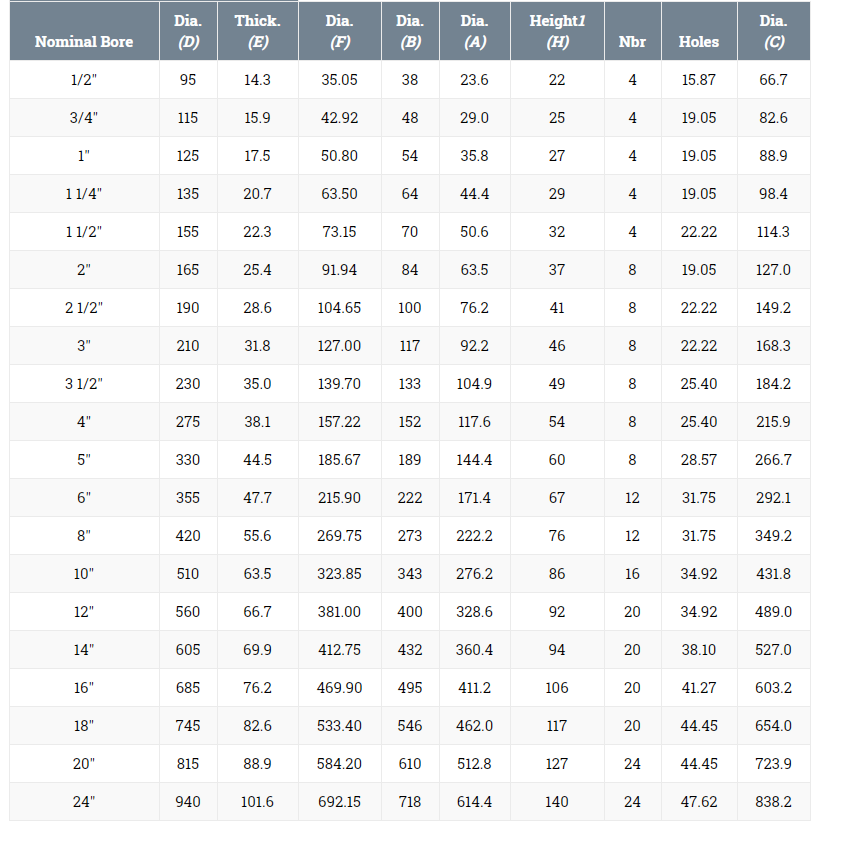

7.Threaded Flanges 600 LBS DIMENSIONS:
8.Threaded Flanges Applications & Uses
Today LANGFANGDINGYANG FLANGE PIPE FITTING CO.,LTD is one of the leading manufacturer and exporters of Threaded Flanges and supplying to various core industries like. We are exporting flanges to countries like UK, Belgium, Saudi Arabia, Dubai, Singapore, Thailand, etc.
If you need much more information about Threaded Flanges
Please send me email : info@fittingflange.com.
