Description
SPECIFICATION

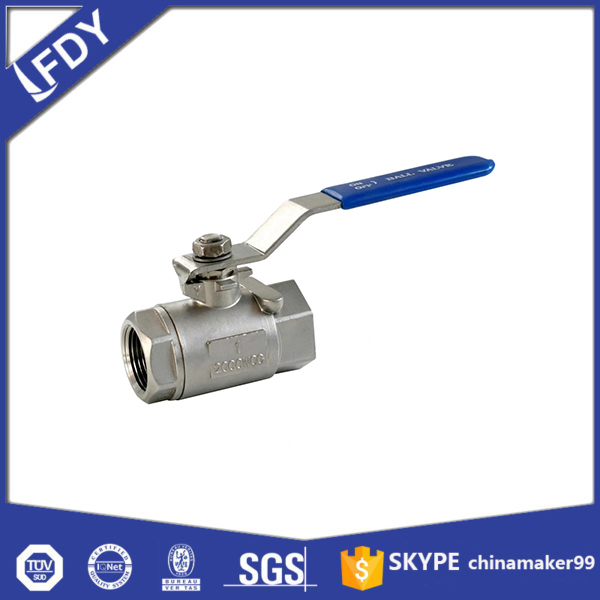

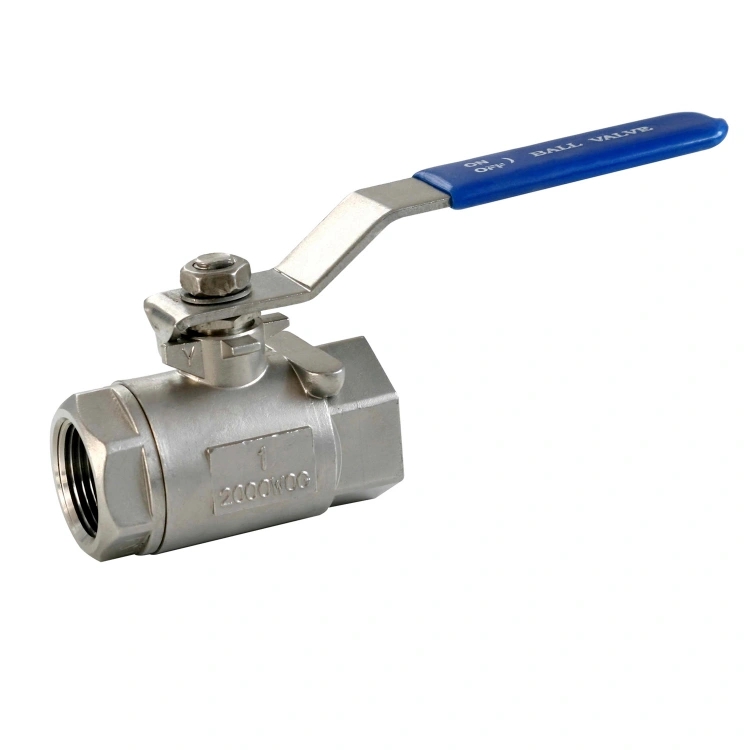

Product Name: 2 way ball valve
Material: Stainless steel ,SS304/CF8, SS316/CF8M,WCB, and so on
British Standard : BS21.0
DIN Standard: DIN2999
American Standard:ASME B1.20.1
ISO Standard: ISO 228-1, ISO7/1
Size: 1/4”-4”
Certificate: ISO9001: 2000,CE
Pressure: 150LB, 1000WOG, PN64
Temperature Range: -20-250 degree C
Application:Applied to stainless steel pipeline system, water system, petrolum system etc
Connection Ends:Socket weld or Threaded: NPT, BSP, BSPT etc.
Suitable medium:Petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, high&low pressure pipeline etc.
Features: 1.1000PSI/PN63
2.Full Port
3.Investment Casting
4.Blow out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(CE0036) Approved
7.Casting Approved Ad2000-W0
8.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
9.Inspection Testing: API598, EN 12266
Related Type:1PC BALL VALVE, 2PC BALL VALVE, 2PC BALL VALVE LIGHT DUTY, 2PC BALL VALVE DIN3202 TYPE, 3PC BALL VALVE, 3PC BALL VALVE WITH DIRECT MOUNTING PAD, 3-WAY BALL VALVE( L & T TYPE), 2PC FLANGE BALL VALVE ( JIS, ANSI, DIN); 3PC FLANGE VALL VALVE( JIS & ANISI & DIN); MINI BALL VALVE, BIBCOCK VALVE, GATE VALVE; GLOBE VALVE; SWING CHECK VALVE; 1PC SPRING VERTICAL CHECK VALVE; 2PC SPRING VERTICAL CHECK VALVE; 3PC SPRING VERTICAL CHECK VALVE; Y-STRAINER; ETC.
Customers’ drawings or designs are available.
