Definition and Basics of Butt Welded Fittings
Butt welded fittings are components used in piping systems to connect pipes, change the direction of flow, or branch off the main pipel
ine These fittings are designed to be welded directly to the ends of pipes. The term “butt” refers to the way the fitting and the pipe are joined – the ends of the pipe and the fitting are placed in contact with each other (butted) and then welded.

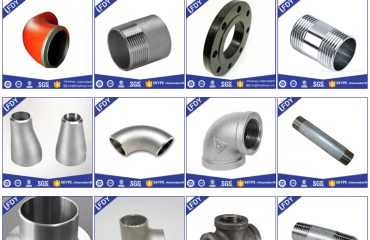

Common types of butt welded fittings include elbows, tees, reducers, and caps. Elbows are used to change the direction of the pipeline, usually at 45 – degree or 90 – degree angles. Tees are employed when a branch connection is needed, allowing fluid to flow from the main pipeline to a secondary line. Reducers are used to change the diameter of the pipeline, either reducing it (reducer) or increasing it (expander). Caps are used to close the end of a pipeline.
Applications of Butt Welded Fittings
Butt welded fittings find extensive use in various industries. In the oil and gas industry, they are crucial for connecting pipelines that transport crude oil, natural gas, and refined products. The high – pressure and high – temperature conditions in these pipelines require reliable and leak – proof connections, which butt welded fittings can provide.
In the power generation sector, especially in power plants that use steam turbines, butt welded fittings are used in the steam piping systems. These fittings ensure the efficient transfer of high – pressure steam, which is used to generate electricity.
The chemical industry also heavily relies on butt welded fittings. Since many chemical processes involve the transportation of corrosive fluids, the seamless and strong connection provided by butt welded fittings helps prevent leaks and ensures the safe operation of the piping systems.
Advantages of Using Butt Welded Fittings
One of the main advantages of butt welded fittings is their strength. The welding process creates a continuous and seamless connection between the fitting and the pipe. This results in a joint that can withstand high pressures and stresses, making it suitable for demanding applications.
Butt welded fittings also offer excellent leak – tightness. When properly welded, the joint forms a solid bond, minimizing the risk of leaks. This is particularly important in industries where the leakage of fluids or gases could have serious consequences, such as in the transportation of hazardous chemicals.
Another advantage is their versatility. They can be used with a wide range of pipe materials, including carbon steel, stainless steel, and various alloys. This allows for customization based on the specific requirements of the application, such as corrosion resistance or high – temperature tolerance..
